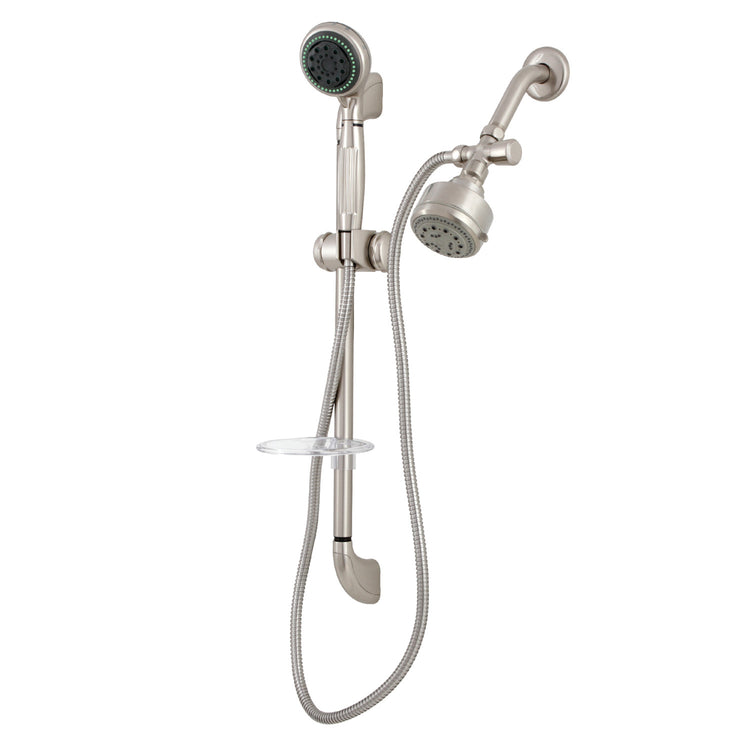

Kingston Brass KSK2528SG8 Made to Match Shower System with 22" Slide Bar and Hand Shower, Brushed Nickel

Kingston Brass KSK2528SG8 Made to Match Shower System with 22" Slide Bar and Hand Shower, Brushed Nickel

Rejuvenate your body and soul with a vigorous shower experience that this shower combo delivers. Designed to provide a powerful massaging feel while scrubbing off the stresses of the day, each of the two shower heads features 5 intense and relaxing spray modes. Seamlessly regulate the height of your hand shower in style with the easily adjustable slide bar. For a complete shower system, matching finish volume controls are sold separately.

Features:

• Item weight: 3.8 lbs.
• High quality brass construction
• Wall mount installation
• No cartridge needed

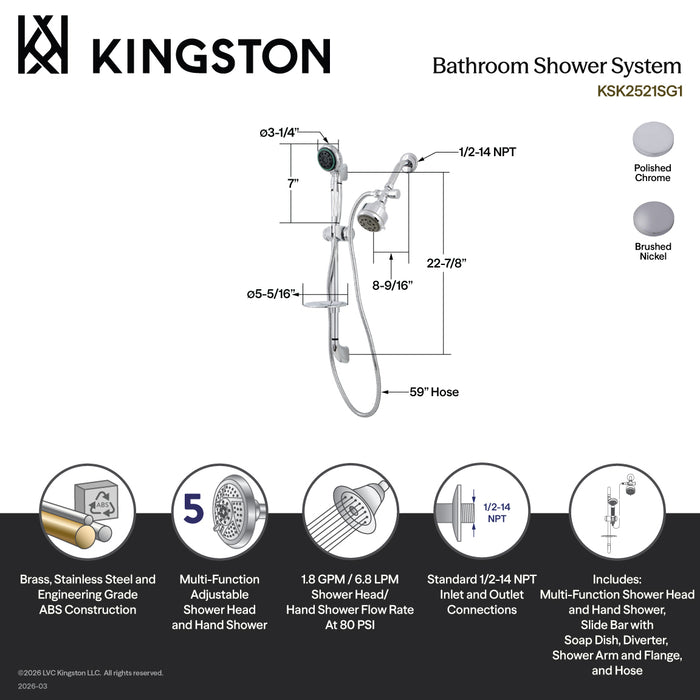

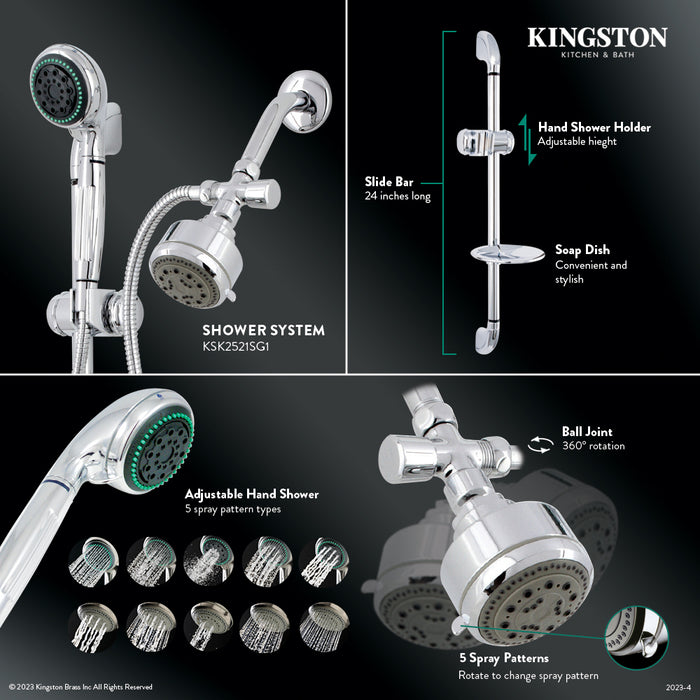

• 6" shower arm and flange, shower diverter, 59" hose, 24" slide bar with soap dish, 5 function hand shower (KSH2528) and 5 function fixed shower head (KX1658)
• 1/2"-14 NPT inlet connection
• 1.8 GPM/6.8 LPM shower head flow rate at 80 PSI
• 1.8 GPM/6.8 LPM hand shower flow rate at 80 PSI
• 3-15/16" shower head height
• 3-1/4" hand shower diameter
• 8-3/4" hand shower height
• 22-7/8" slide bar length
• 25" overall slide bar length
• 51 hand shower spray nozzles
• Knob handle for easy rotation
• 5-3/8" shower arm
• Includes 59" hand shower hose
• Check local building codes prior to purchasing this or any plumbing product
• Vacuum breaker backflow prevention on hand shower

Downloads

	Specification Sheet
	Parts Diagram
	Installation Guide
