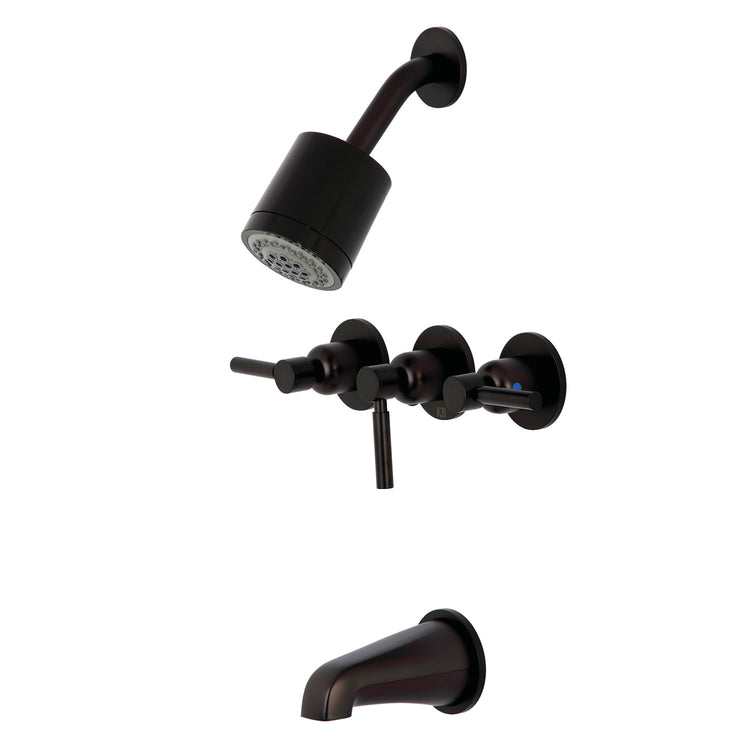

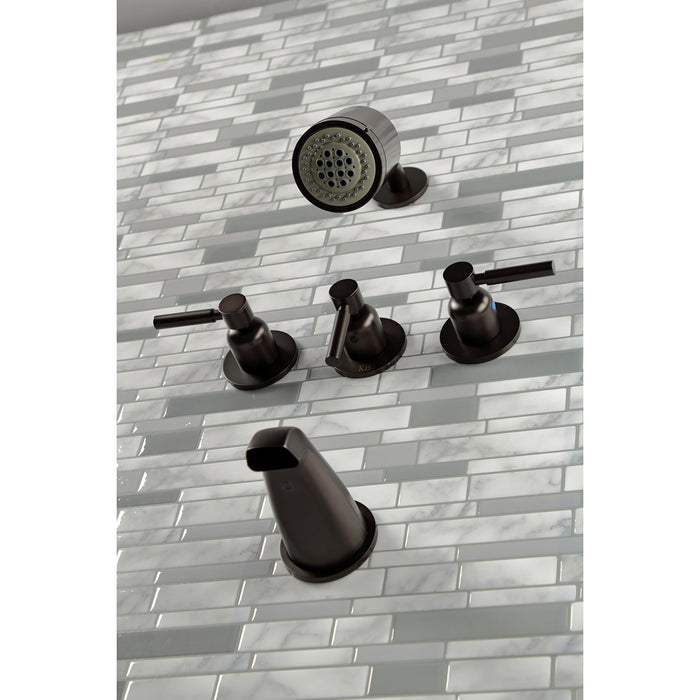

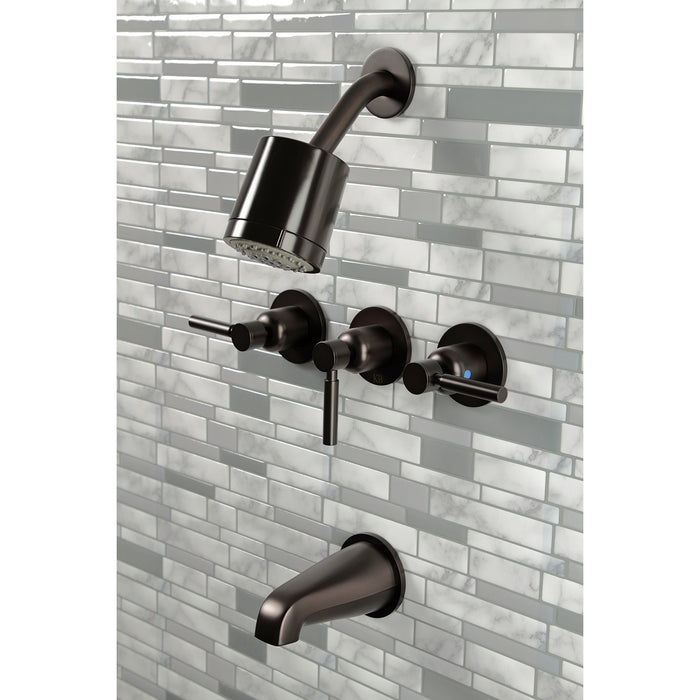

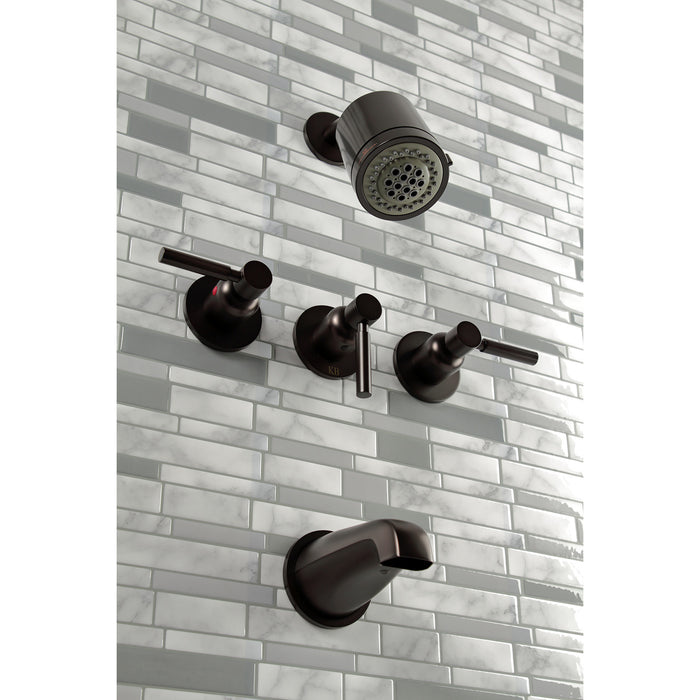

Kingston Brass KBX8135DL Concord Triple-Handle Tub and Shower Faucet, Oil Rubbed Bronze

Kingston Brass KBX8135DL Concord Triple-Handle Tub and Shower Faucet, Oil Rubbed Bronze

Dive into modern design with the sleek and cylindrical styling of this tub and shower faucet. Complete with easy-to-turn lever handles, an optimum bathing experience awaits. Enjoy the sturdy brass construction and premium oil rubbed bronze finish for a fixture that will last for years to come. Internal valve hardware is included for your use.

Features:

• Item weight: 5.07 lbs.
• Heavy duty brass, zinc alloy, and ABS construction for added durability
• Wall mount installation
• Durable washerless cartridge
• Standard 1/2-14 NPT connection
• 1.8 GPM/6.8 LPM showerhead flow rate at 80 PSI
• 7.0 GPM/26.5 LPM spout flow rate at 80 PSI

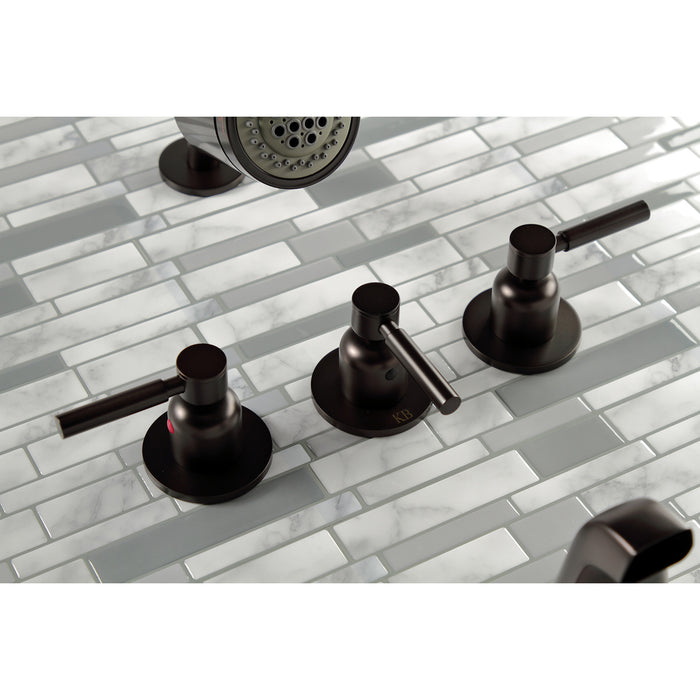

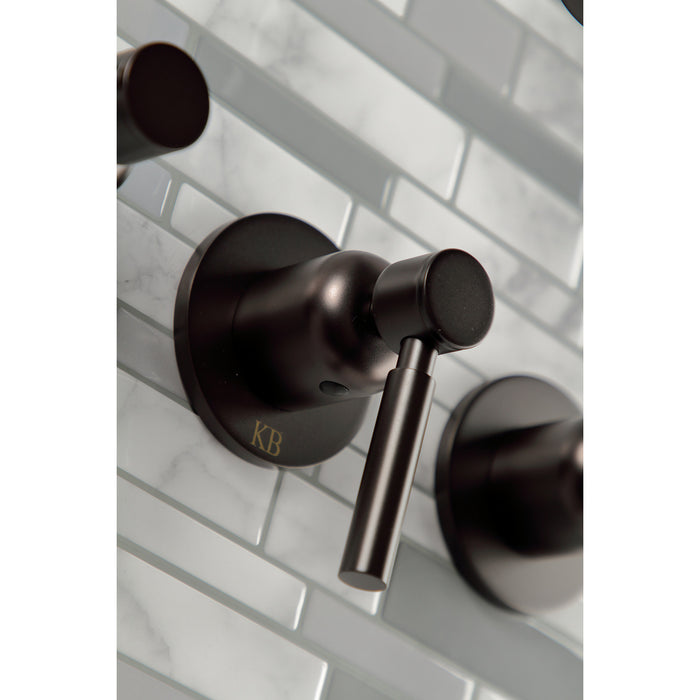

• Triple lever handles meet ADA guidelines
• 2-3/4" faceplate diameter

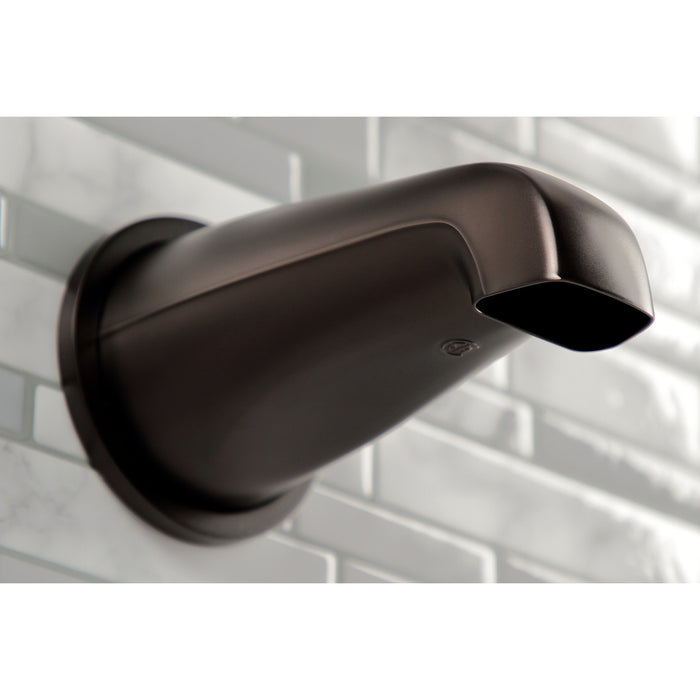

• 4-13/16" diverter tub spout reach
• 7-1/8" shower arm reach including shower head

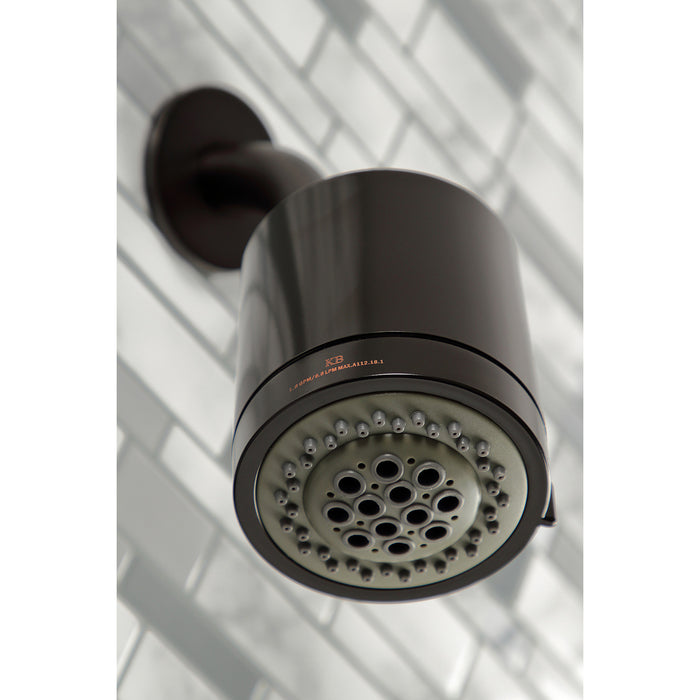

• Adjustable 3-3/16" width showerhead
